HBLVS 1 HBLVS 2 HBLVS 3 HBLVS 4 HBLVS 5 HBLVS 10 HBLVS 15 HBLVS 20 HBLVR / HBLVS 32 HBLVR / HBLVS 45 HBLVR / HBLVS 64 HBLVR / HBLVS 90
HBLVR / HBLVS 64

HOBILS Submersible Motor Pumps

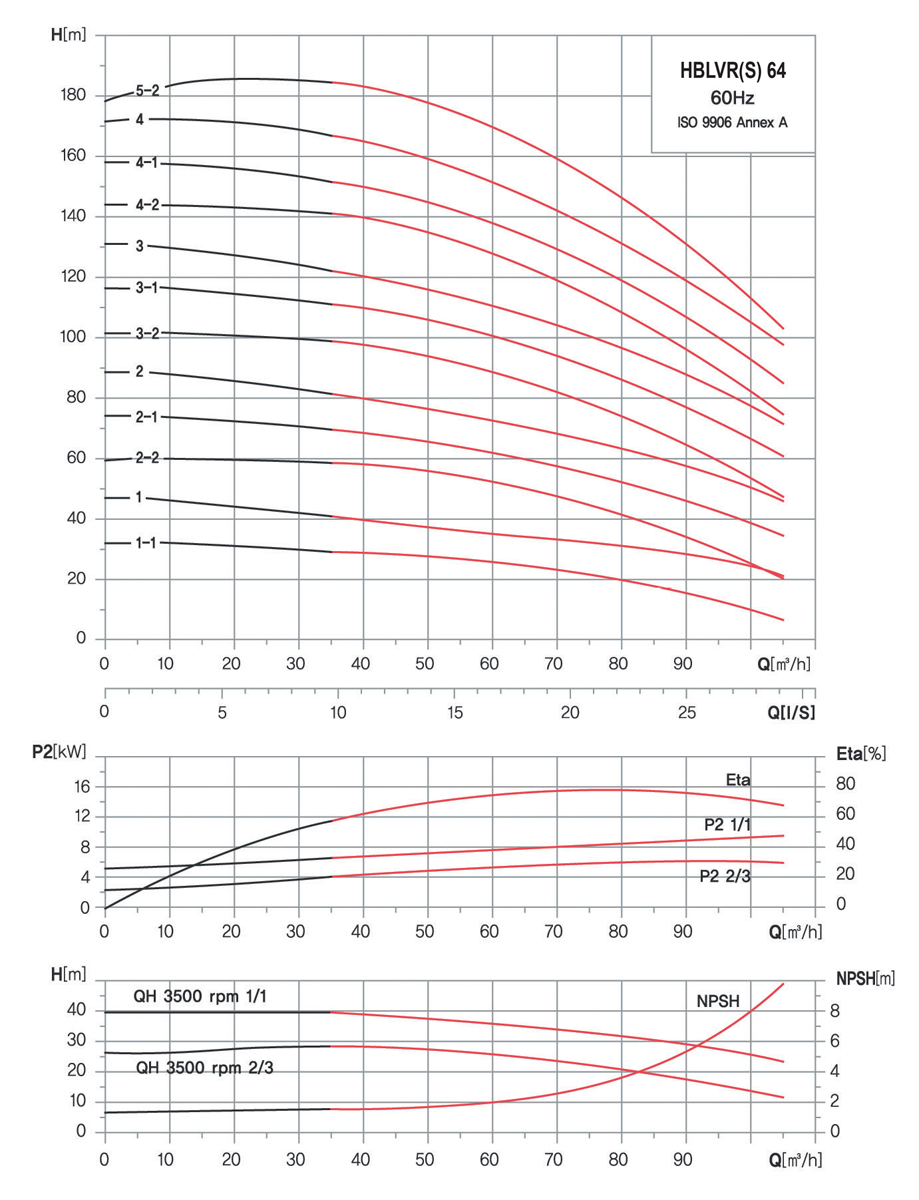

성능곡선

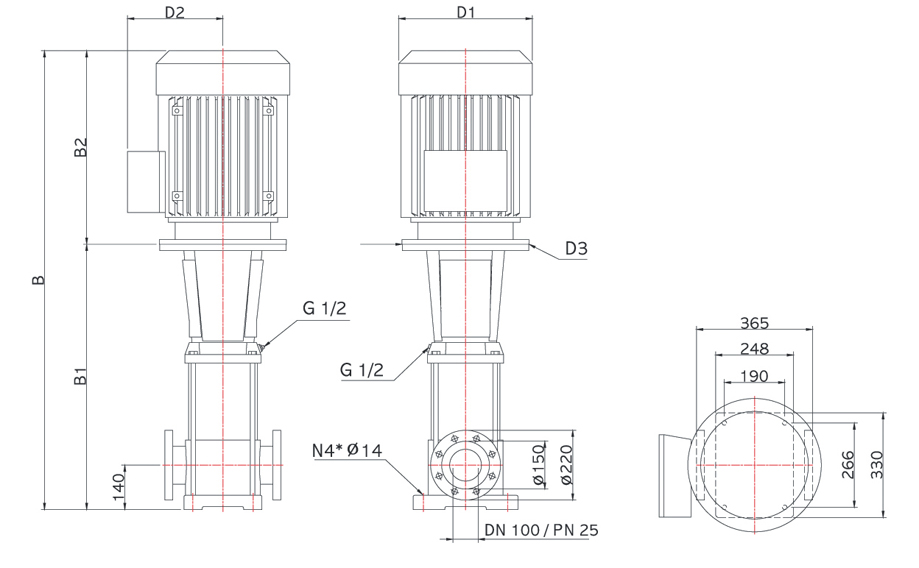

외형자료

규격/중량

Pump Type Voltage Power 치수표[mm] Weight[kg]
B B1 B2 D1 D2 D3
HBLVR(S)64-1-1 3x380V 7.5 959 561 398 259 164 300 104
HBLVR(S)64-1 3x380V 11 1170 671 499 330 255 350 139
HBLVR(S)64-2-2 3x380V 15 1253 754 499 330 255 350 161
HBLVR(S)64-2-1 3x380V 18.5 1334 754 499 314 253 350 213
HBLVR(S)64-2 3x380V 22 1334 754 580 360 285 350 254
HBLVR(S)64-3-2 3x380V 22 1426 836 590 360 285 350 259
HBLVR(S)64-3-1 3x380V 30 1501 836 665 400 305 400 303.2
HBLVR(S)64-3 3x380V 30 1496 836 665 400 305 400 309
HBLVR(S)64-4-2 3x380V 37 1579 919 665 400 305 400 345
HBLVR(S)64-4-1 3x380V 37 1584 919 665 400 305 400 325.2
HBLVR(S)64-4 3x380V 45 1619 919 700 460 340 450 424
HBLVR(S)64-5-2 3x380V 45 1701 1001 700 460 340 450 429
