HOBILS Submersible Motor Pumps

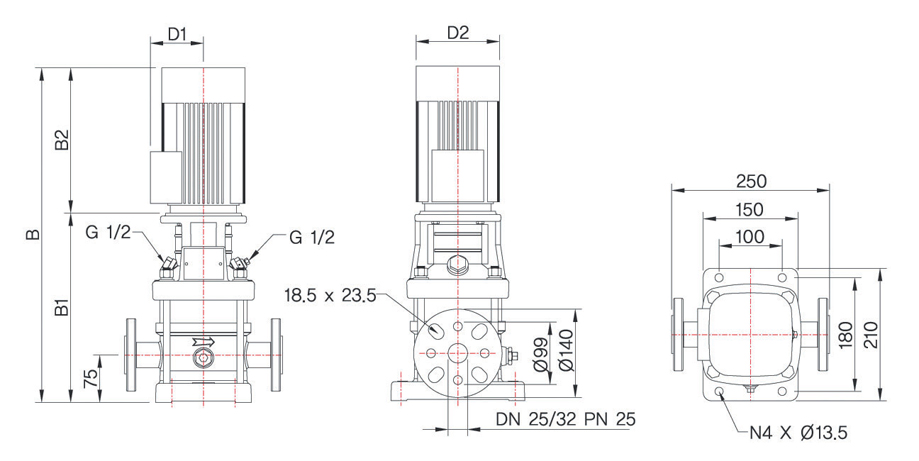

Pump Type | Voltage | Power | 치수표[mm] | Weight[kg] | |||||
---|---|---|---|---|---|---|---|---|---|
B | B1 | B2 | D1 | D2 | D3 | ||||
HBLVS 1-2 | 3x220/380V | 0.37 | 494 | 264 | 230 | 132 | 84 | 120 | 22.5 |
HBLVS 1-3 | 3x220/380V | 0.37 | 512 | 282 | 230 | 132 | 84 | 120 | 23 |
HBLVS 1-4 | 3x220/380V | 0.37 | 530 | 300 | 230 | 132 | 84 | 120 | 22.5 |
HBLVS 1-5 | 3x220/380V | 0.55 | 548 | 318 | 230 | 132 | 84 | 120 | 24 |
HBLVS 1-6 | 3x220/380V | 0.55 | 566 | 336 | 230 | 132 | 84 | 120 | 24.5 |
HBLVS 1-7 | 3x220/380V | 0.75 | 608 | 358 | 250 | 150 | 95 | 120 | 27 |
HBLVS 1-8 | 3x220/380V | 0.75 | 626 | 376 | 250 | 150 | 95 | 120 | 27.5 |
HBLVS 1-9 | 3x220/380V | 0.75 | 644 | 394 | 250 | 150 | 95 | 120 | 28 |
HBLVS 1-10 | 3x220/380V | 1.1 | 662 | 412 | 250 | 150 | 95 | 140 | 30 |
HBLVS 1-11 | 3x220/380V | 1.1 | 680 | 430 | 250 | 150 | 95 | 140 | 30.5 |
HBLVS 1-12 | 3x220/380V | 1.1 | 698 | 448 | 250 | 150 | 95 | 140 | 31 |
HBLVS 1-13 | 3x220/380V | 1.1 | 716 | 466 | 250 | 150 | 95 | 140 | 31.5 |
HBLVS 1-15 | 3x220/380V | 1.5 | 828 | 518 | 310 | 168 | 112 | 140 | 39 |
HBLVS 1-17 | 3x220/380V | 1.5 | 864 | 554 | 310 | 168 | 112 | 140 | 40 |
HBLVS 1-19 | 3x220/380V | 2.2 | 900 | 590 | 310 | 168 | 112 | 140 | 42 |
HBLVS 1-21 | 3x220/380V | 2.2 | 936 | 626 | 310 | 168 | 112 | 140 | 43 |
HBLVS 1-23 | 3x220/380V | 2.2 | 972 | 662 | 310 | 168 | 112 | 140 | 44 |
HBLVS 1-25 | 3x220/380V | 2.2 | 1008 | 698 | 310 | 168 | 112 | 140 | 45 |
HBLVS 1-27 | 3x220/380V | 3 | 1068 | 738 | 330 | 194 | 124 | 150 | 49 |
