HBLVS 3

HOBILS Submersible Motor Pumps

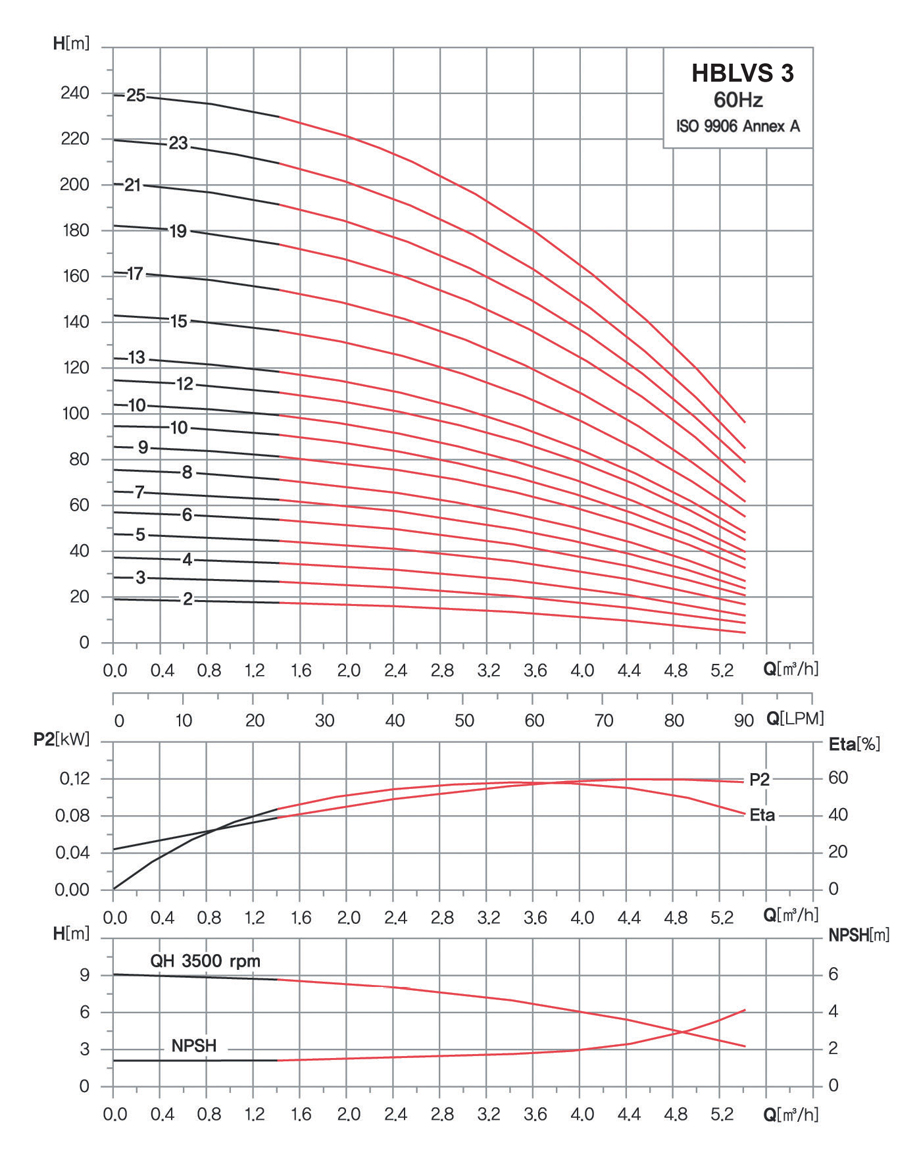

성능곡선

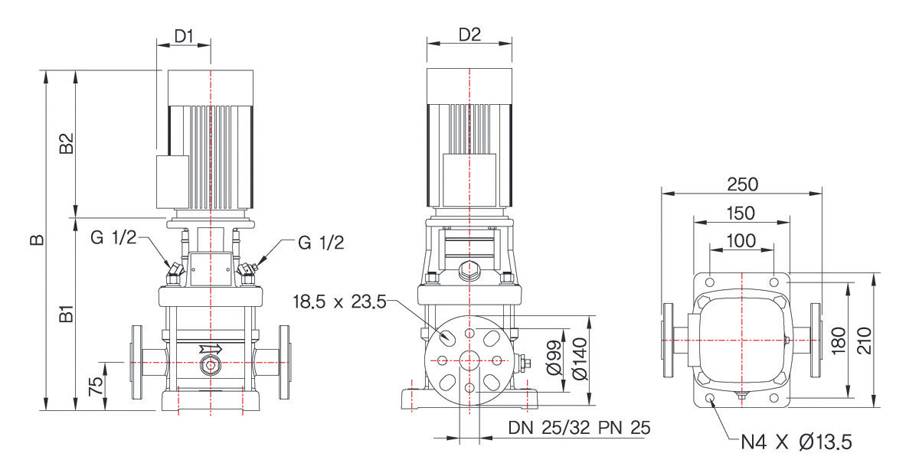

외형자료

규격/중량

Pump Type Voltage Power 치수표[mm] Weight[kg]
B B1 B2 D1 D2 D3
HBLVS 3-2 3x220/380 V 0.37 494 264 230 132 84 120 23
HBLVS 3-3 3x220/380V 0.55 512 282 230 132 84 120 23.5
HBLVS 3-4 3x220/380V 0.55 530 300 230 132 84 120 24
HBLVS 3-5 3x220/380V 0.75 572 322 250 150 95 120 26
HBLVS 3-6 3x220/380V 1.1 590 340 250 150 95 140 29
HBLVS 3-7 3x220/380V 1.1 608 358 250 150 95 140 29.5
HBLVS 3-8 3x220/380V 1.1 626 376 250 150 95 140 30
HBLVS 3-9 3x220/380V 1.5 720 410 310 168 112 140 37
HBLVS 3-10 3x220/380V 1.5 738 428 310 168 112 140 37.5
HBLVS 3-11 3x220/380V 1.5 756 446 310 168 112 140 38
HBLVS 3-12 3x220/380V 2.2 774 464 310 168 112 140 39
HBLVS 3-13 3x220/380V 2.2 792 482 310 168 112 140 39.5
HBLVS 3-15 3x220/380V 2.2 828 518 310 168 112 140 40.5
HBLVS 3-17 3x220/380V 2.2 864 554 310 168 112 140 41.5
HBLVS 3-19 3x220/380V 3 924 594 330 194 124 150 46
HBLVS 3-21 3x220/380V 3 960 630 330 194 124 150 47
HBLVS 3-23 3x220/380V 3 996 666 330 194 124 150 48
HBLVS 3-25 3x220/380V 4 1059 702 357 194 142 150 59
