HBLVS 2

HOBILS Submersible Motor Pumps

성능곡선

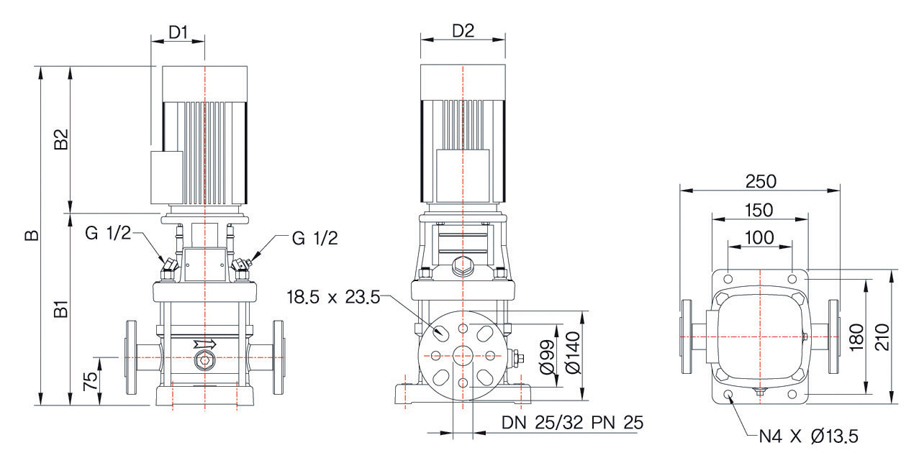

외형자료

규격/중량

Pump Type Voltage Power 치수표[mm] Weight[kg]
B B1 B2 D1 D2 D3
HBLVS 2-2 3x220/380V 0.37 450 220 230 132 84 120 23
HBLVS 2-3 3x220/380V 0.55 468 238 230 132 84 120 23.5
HBLVS 2-4 3x220/380V 0.75 0.75 256 250 150 95 120 24
HBLVS 2-5 3x220/380V 1.1 524 274 250 150 95 140 24.5
HBLVS 2-6 3x220/380V 1.1 547 297 250 150 95 140 26.5
HBLVS 2-7 3x220/380V 1.5 625 315 310 168 112 140 28
HBLVS 2-8 3x220/380V 2.2 643 333 310 168 112 140 29
HBLVS 2-9 3x220/380V 2.2 661 351 310 168 112 140 29.5
HBLVS 2-10 3x220/380V 2.2 679 369 310 168 112 140 30
HBLVS 2-11 3x220/380V 2.2 697 387 310 168 112 140 30.5
HBLVS 2-12 3x220/380V 3 752 422 330 194 124 150 36
HBLVS 2-13 3x220/380V 3 770 440 330 194 124 150 36.5
HBLVS 2-14 3x220/380V 3 788 458 330 194 124 150 37
HBLVS 2-15 3x220/380V 3 806 476 330 194 124 150 37.5
HBLVS 2-16 3x220/380V 4 851 494 357 212 142 150 39
HBLVS 2-17 3x220/380V 4 869 512 357 212 142 150 40
HBLVS 2-18 3x220/380V 4 887 530 357 212 142 150 41
