HBLVS 10

HOBILS Submersible Motor Pumps

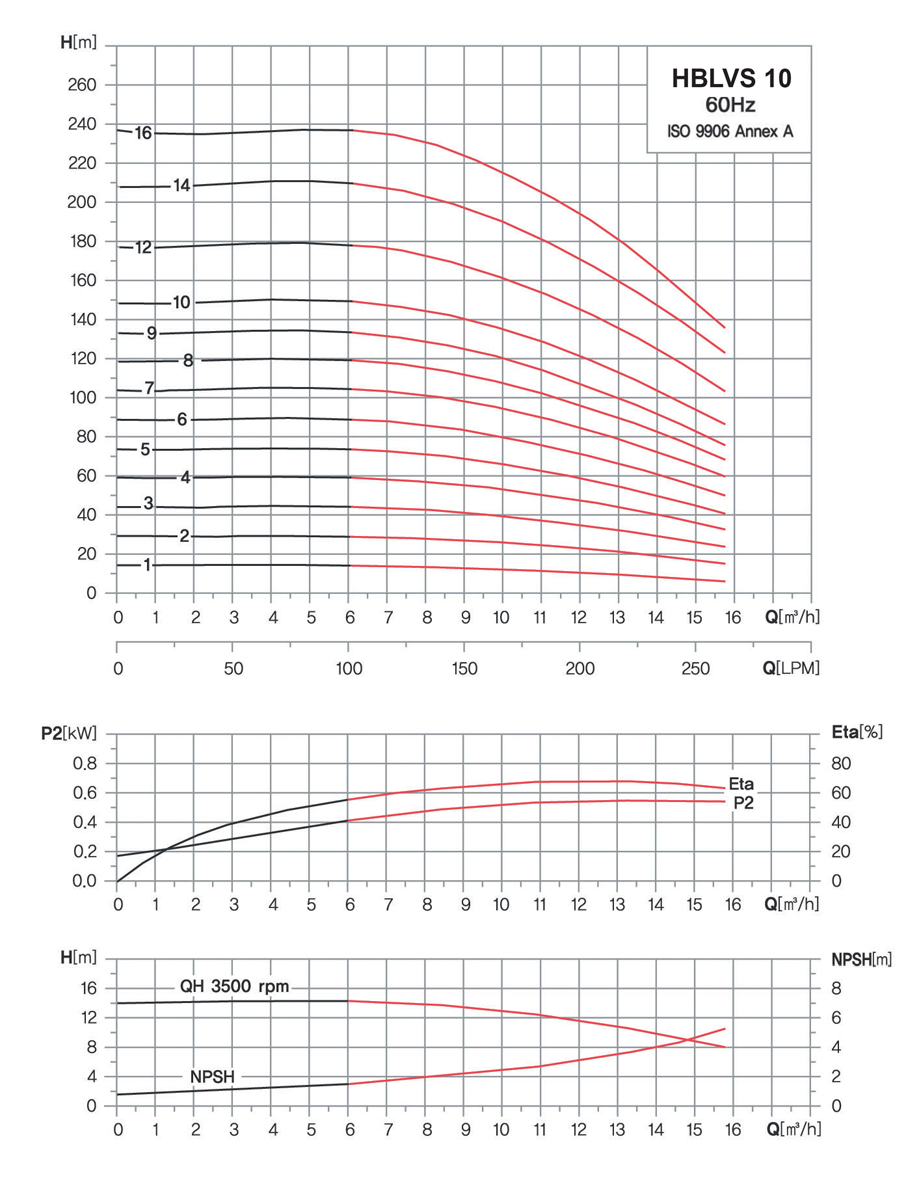

성능곡선

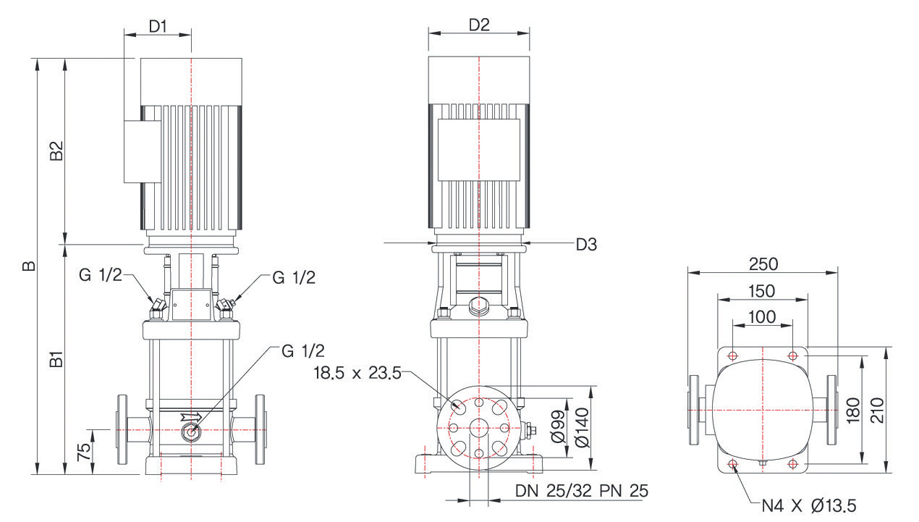

외형자료

규격/중량

Pump Type Voltage Power 치수표[mm] Weight[kg]
B B1 B2 D1 D2 D3
HBLVS 10-1 3x220/380V 0.75 574 324 250 150 95 120 36
HBLVS 10-2 3x220/380V 1.5 680 370 310 168 112 140 45
HBLVS 10-3 3x220/380V 2.2 710 400 310 168 112 140 47
HBLVS 10-4 3x220/380V 3 765 435 330 194 124 150 52
HBLVS 10-5 3x220/380V 3 795 465 330 194 124 150 53
HBLVS 10-6 3x220/380V 4 852 495 357 212 142 150 65
HBLVS 10-7 3x380V 5.5 955 557 398 259 164 200 87
HBLVS 10-8 3x380V 5.5 985 587 398 259 164 200 88
HBLVS 10-9 3x380V 5.5 1015 617 398 259 164 200 89
HBLVS 10-10 3x380V 7.5 1045 647 398 259 164 200 92
HBLVS 10-12 3x380V 7.5 1105 707 398 259 164 200 94
HBLVS 10-14 3x380V 11 1343 844 499 330 255 350 127
HBLVS 10-16 3x380V 11 1403 904 499 330 255 350 129
HBLVS 10-17 3x380V 11 1449 950 499 330 255 350 131
