HBLVS 4

HOBILS Submersible Motor Pumps

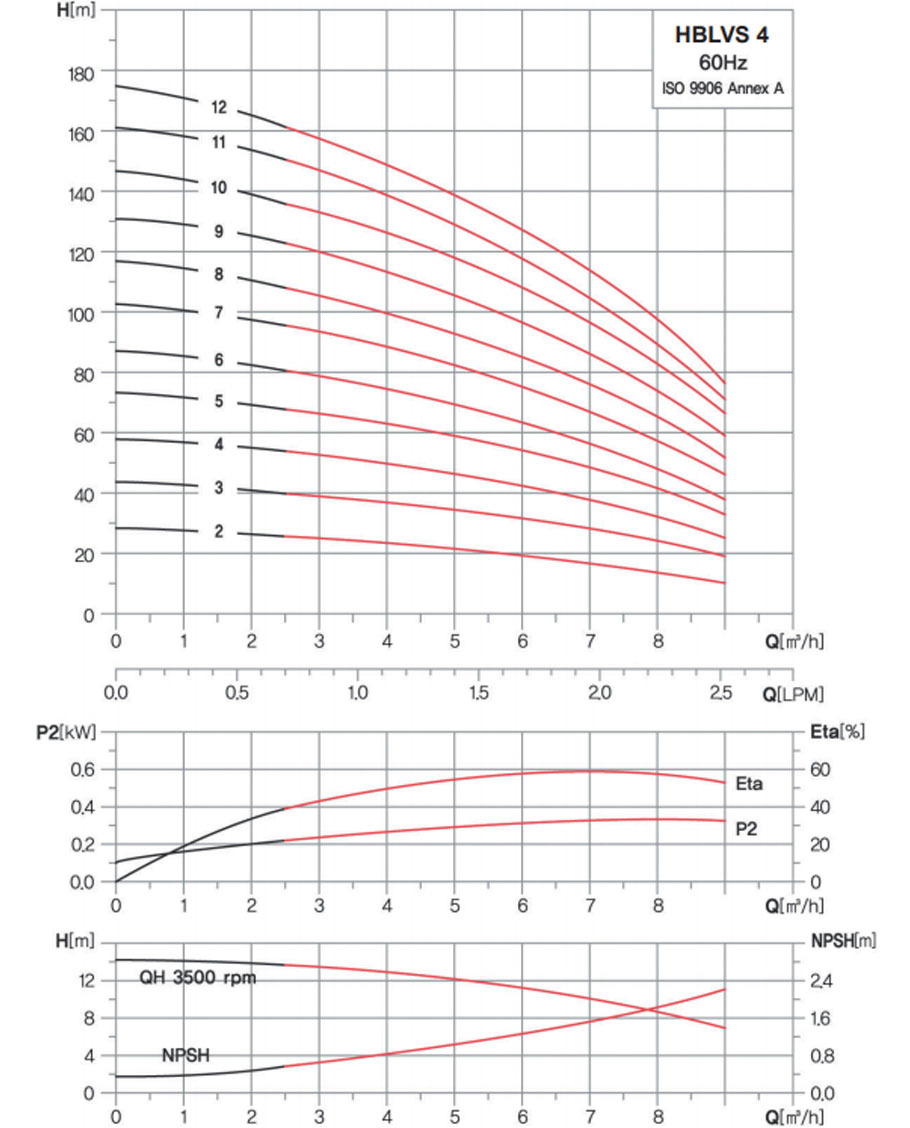

성능곡선

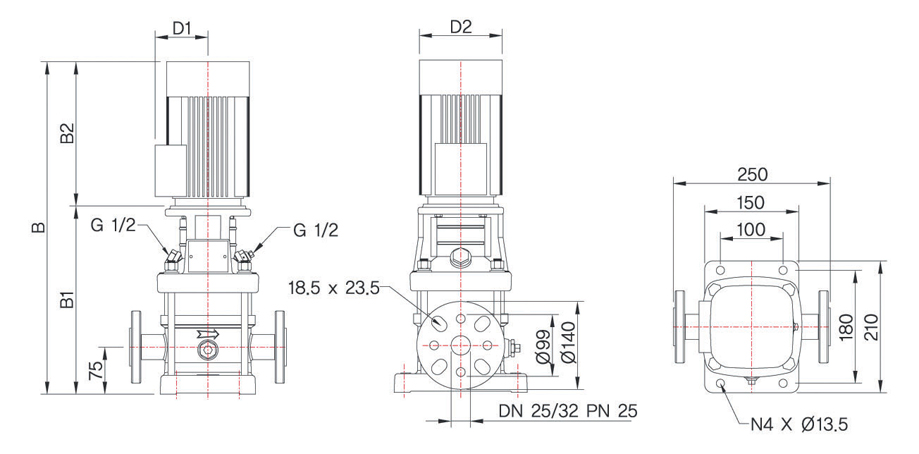

외형자료

규격/중량

Pump Type Voltage Power 치수표[mm] Weight[kg]
B B1 B2 D1 D2 D3
HBLVS 4-2 3x220/380 0.75 488 238 250 150 95 120 23
HBLVS 4-3 3x220/380 1.1 515 265 250 150 95 140 23.5
HBLVS 4-4 3x220/380 1.5 607 297 310 168 112 140 24
HBLVS 4-5 3x220/380 2.2 634 324 310 168 112 140 26
HBLVS 4-6 3x220/380 2.2 661 351 310 168 112 140 26.5
HBLVS 4-7 3x220/380 3 725 395 330 194 124 150 33
HBLVS 4-8 3x220/380 3 752 422 330 194 124 150 33.5
HBLVS 4-9 3x220/380 4 806 449 357 212 212 150 37
HBLVS 4-10 3x220/380 4 833 476 357 212 212 150 37.5
HBLVS 4-11 3x220/380 4 860 503 357 212 212 150 38
HBLVS 4-12 3x220/380 4 887 503 357 212 212 150 38.6
