HBLVS 1 HBLVS 2 HBLVS 3 HBLVS 4 HBLVS 5 HBLVS 10 HBLVS 15 HBLVS 20 HBLVR / HBLVS 32 HBLVR / HBLVS 45 HBLVR / HBLVS 64 HBLVR / HBLVS 90
HBLVR / HBLVS 45

HOBILS Submersible Motor Pumps

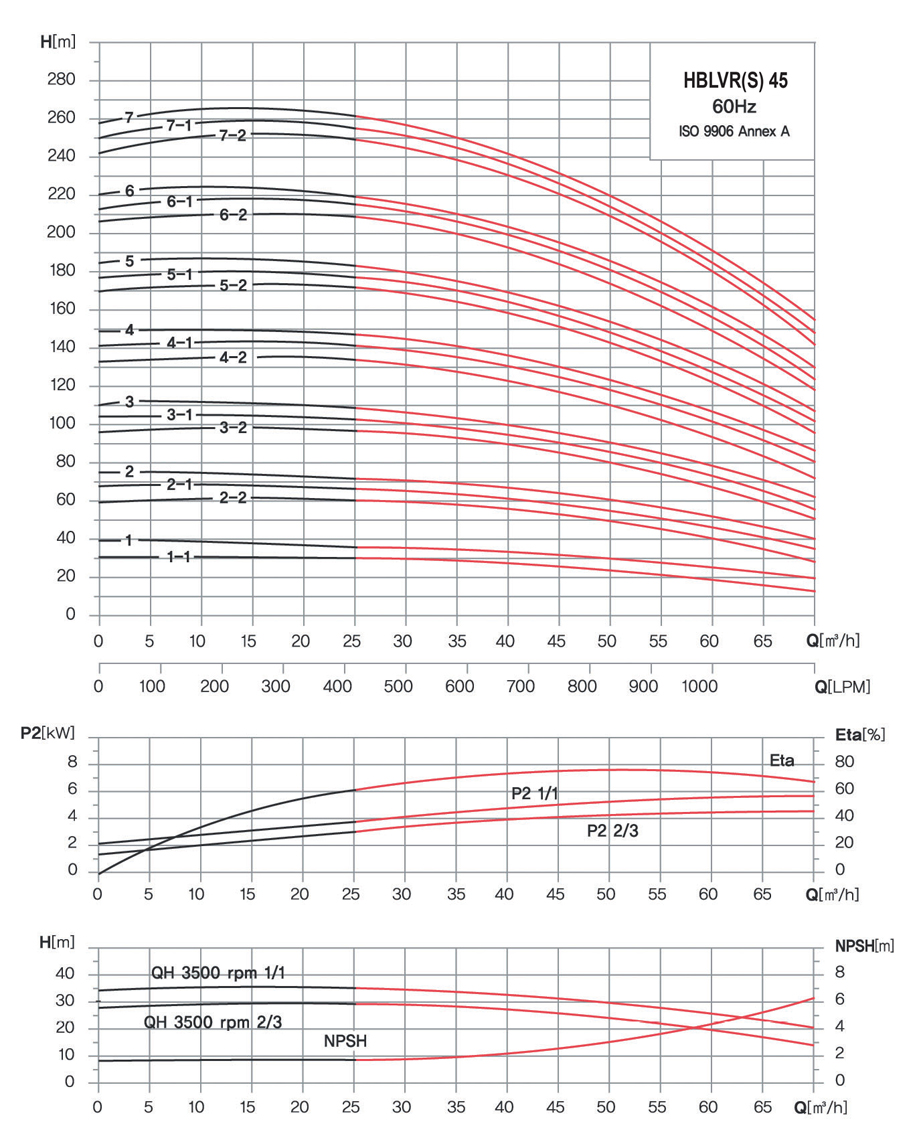

성능곡선

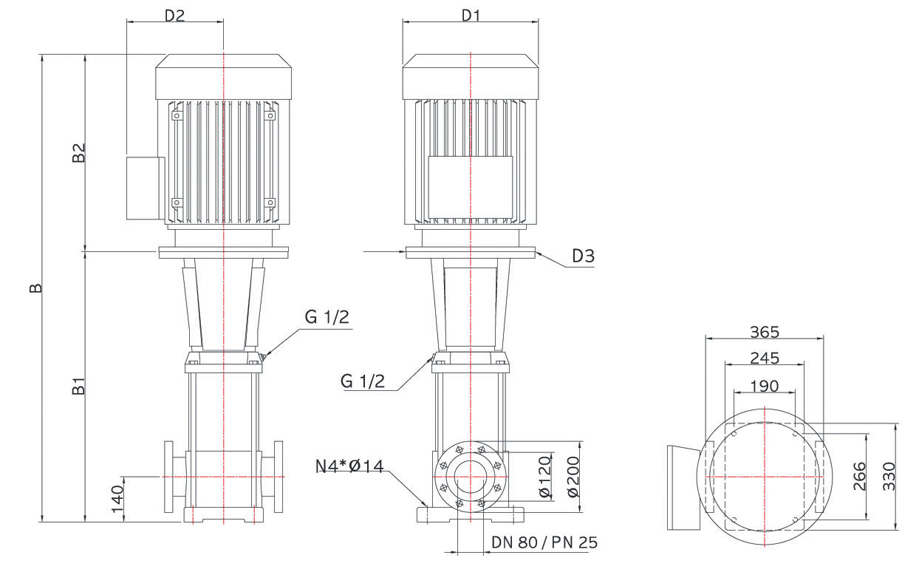

외형자료

규격/중량

Pump Type Voltage Power 치수표[mm] Weight[kg]
B B1 B2 D1 D2 D3
HBLVR(S)45-1-1 3x380V 5.5 959 561 398 259 164 300 100
HBLVR(S)45-1 3x380V 7.5 959 561 398 259 164 300 102
HBLVR(S)45-2-2 3x380V 11 1139 639 500 314 253 350 140
HBLVR(S)45-2-1 3x380V 11 1139 639 500 314 253 350 176
HBLVR(S)45-2 3x380V 15 1247 748 525 330 255 350 158
HBLVR(S)45-3-2 3x380V 18.5 1374 829 545 314 253 350 169
HBLVR(S)45-3-1 3x380V 18.5 1374 829 545 314 253 350 214.6
HBLVR(S)45-3 33x380V 18.5 1374 829 545 314 253 350 169
HBLVR(S)45-4-2 3x380V 22 1374 908 590 360 285 350 259
HBLVR(S)45-4-1 3x380V 30 1498 909 660 400 310 400 304.4
HBLVR(S)45-4 3x380V 30 1569 909 660 400 310 400 309
HBLVR(S)45-5-2 3x380V 30 1569 988 660 400 310 400 313
HBLVR(S)45-5-1 3x380V 30 1648 988 660 400 310 400 307.2
HBLVR(S)45-5 3x380V 30 1648 988 660 400 310 400 313
HBLBR(S)45-6-2 3x380V 37 1729 1069 660 400 310 400 349
HBLVR(S)45-6-1 3x380V 37 1729 1069 660 400 310 400 349
HBLVR(S)45-6 3x380V 37 1729 1069 660 400 310 400 349
HBLVR(S)45-7-2 3x380V 45 1844 1149 695 446 330 450 433
HBLVR(S)45-7-1 3x380V 45 1844 1149 695 446 330 450 433
HBLVR(S)45-7 3x380V 45 1844 1149 695 446 330 450 433
