HBLVS 5

HOBILS Submersible Motor Pumps

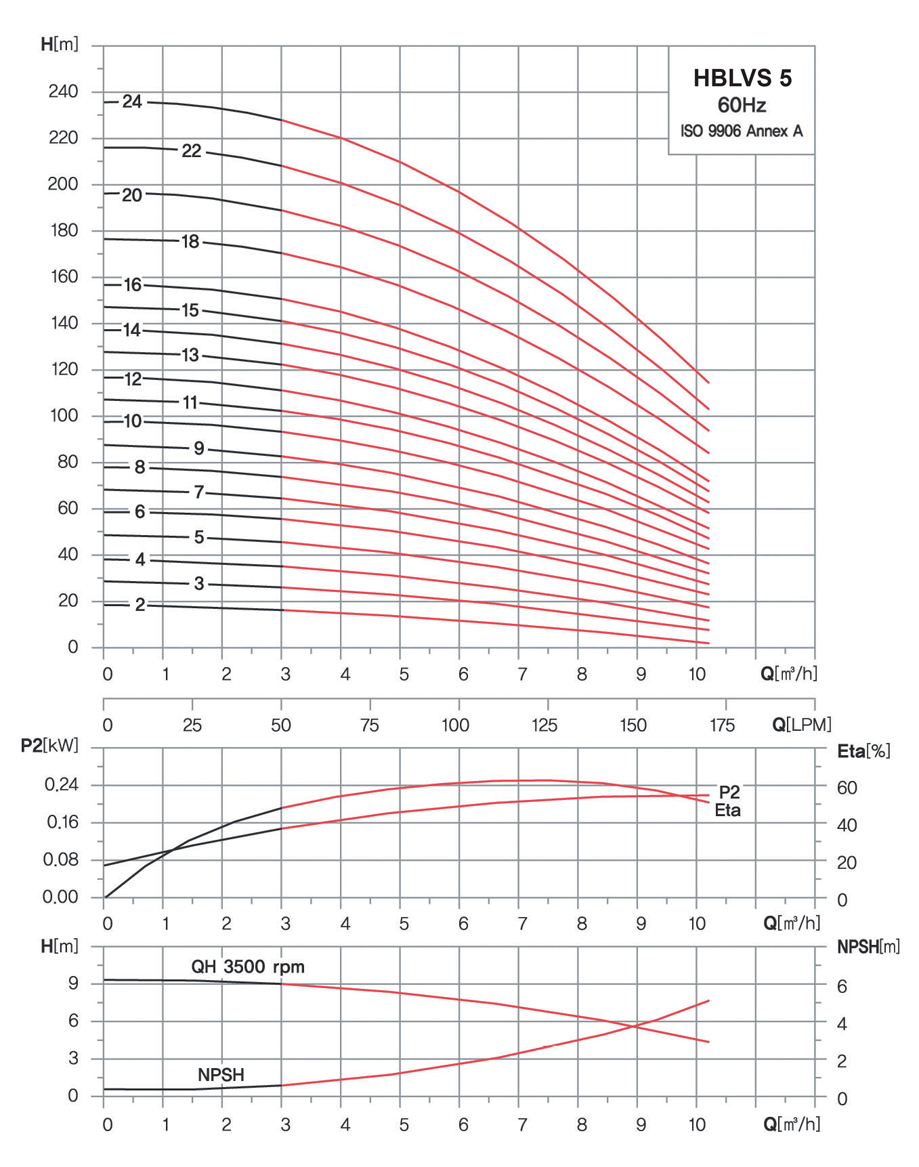

성능곡선

외형자료

규격/중량

Pump Type Voltage Power 치수표[mm] Weight[kg]
B B1 B2 D1 D2 D3
HBLVS 5-2 3x220/380V 0.55 512 282 230 132 84 120 23
HBLVS 5-3 3x220/380V 1.1 563 313 250 150 95 140 28
HBLVS 5-4 3x220/380V 1.1 590 340 250 150 95 140 28.5
HBLVS 5-5 3x220/380V 1.5 693 383 310 168 112 140 36
HBLVS 5-6 3x220/380V 2.2 720 410 310 168 112 140 37
HBLVS 5-7 3x220/380V 2.2 747 437 310 168 112 140 37.5
HBLVS 5-8 3x220/380V 2.2 774 464 310 168 112 140 38
HBLVS 5-9 3x220/380V 2.2 801 491 310 168 112 140 38.5
HBLVS 5-10 3x220/380V 3 852 522 330 194 124 150 44
HBLVS 5-11 3x220/380V 3 879 549 330 194 124 150 44.5
HBLVS 5-12 3x220/380V 3 906 576 330 194 124 150 45
HBLVS 5-13 3x220/380V 4 960 603 357 212 142 150 56
HBLVS 5-14 3x220/380V 4 987 630 357 212 142 150 56.5
HBLVS 5-15 3x220/380V 4 1014 657 357 212 142 150 57
HBLVS 5-16 3x220/380V 4 1041 684 357 212 142 150 57.5
HBLVS 5-18 3x380V 5.5 1125 727 398 259 164 200 74
HBLVS 5-20 3x380V 5.5 1179 781 398 259 164 200 75
HBLVS 5-22 3x380V 5.5 1233 835 398 259 164 200 76
HBLVS 5-24 3x380V 7.5 1287 889 389 259 164 200 79
