HBLVR / HBLVS 32

HOBILS Submersible Motor Pumps

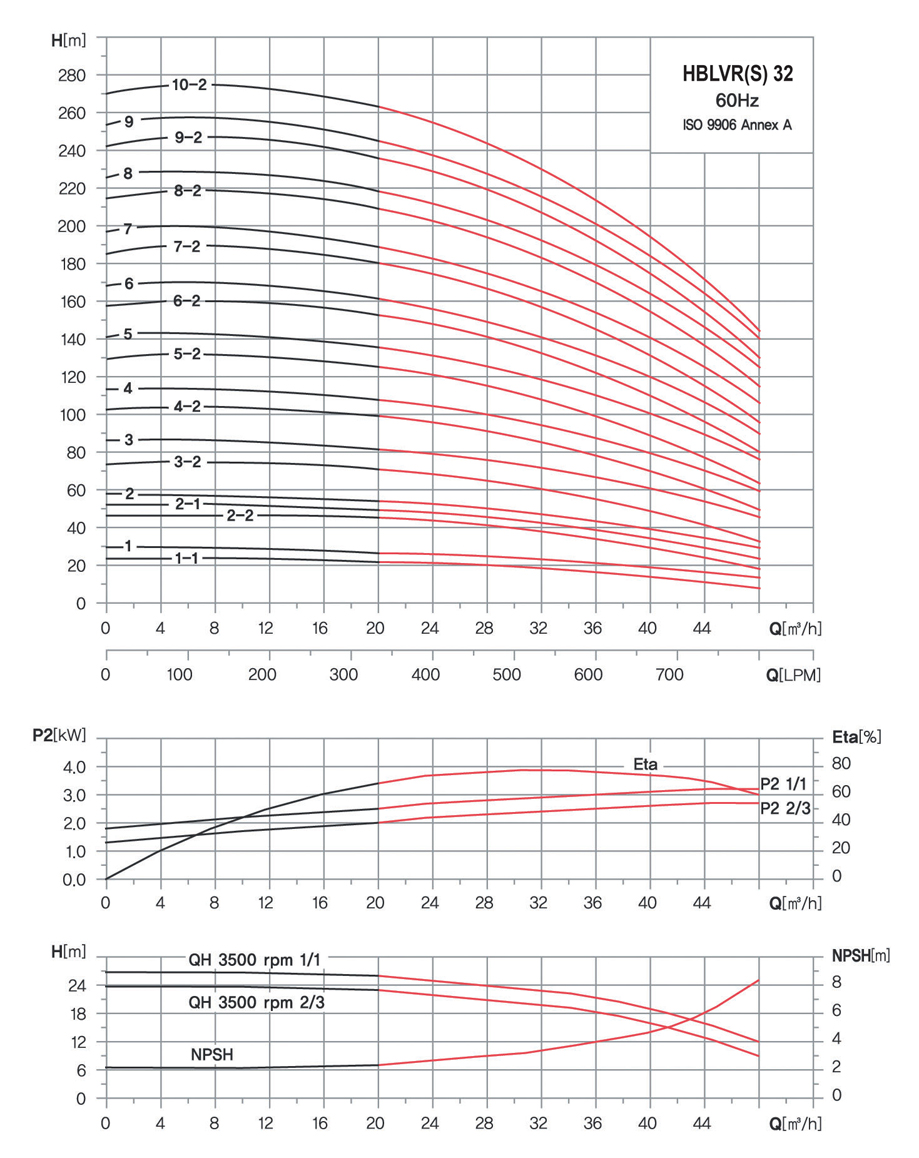

성능곡선

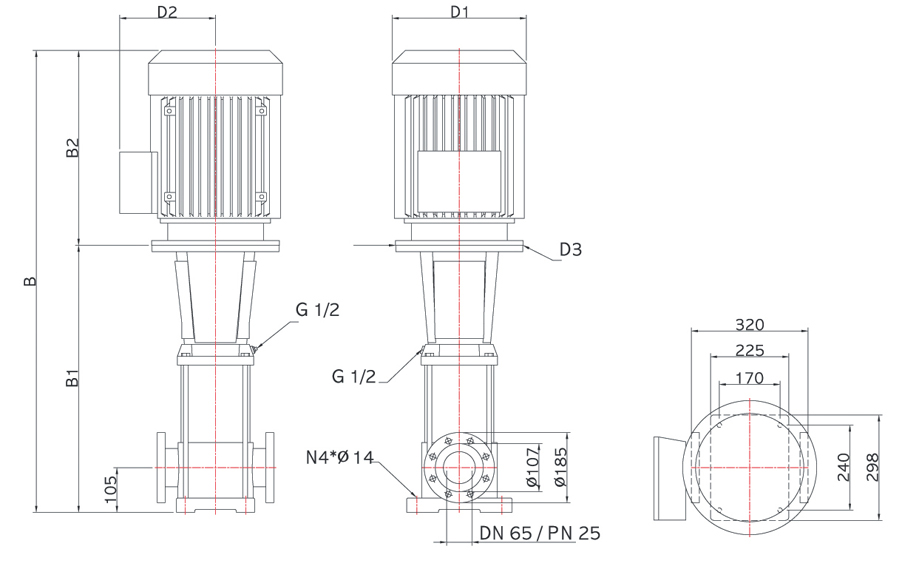

외형자료

규격/중량

Pump Type Voltage Power 치수표[mm] Weight[kg]
B B1 B2 D1 D2 D3
HBLVR(S)32-1-1 3x220/380V 2.2 702 505 197 168 106 160 60.6
HBLVR(S)32-1 3x220/380V 3 827 505 322 195 121 160 66.4
HBLVR(S)32-2-2 3x380V 5.5 1005 575 430 260 160 300 93
HBLVR(S)32-2-1 3x380V 5.5 1005 575 430 260 160 300 94
HBLVR(S)32-2 3x380V 7.5 1005 575 430 260 160 300 95
HBLVR(S)32-3-2 3x380V 11 1145 645 500 314 253 350 166
HBLVR(S)32-3 3x380V 11 1145 645 500 314 253 350 167
HBLVR(S)32-4-2 33x380V 11 1215 715 500 314 253 350 169
HBLVR(S)32-4 3x380V 15 1319 820 525 330 255 350 175
HBLVR(S)32-5-2 3x380V 15 1420 895 525 330 255 350 193
HBLVR(S)32-5 3x380V 18.5 1433 890 545 314 253 350 195
HBLVR(S)32-6-2 3x380V 18.5 1510 965 545 314 253 350 199
HBLVR(S)32-6 3x380V 18.5 1510 965 545 314 253 350 215
HBLVR(S)32-7-2 3x380V 22 1615 1035 580 355 270 350 233
HBLVR(S)32-7 3x380V 22 1615 1035 580 355 270 350 256
HBLVR(S)32-8-2 3x380V 30 1770 1105 665 400 305 400 262
HBLVR(S)32-8 33x380V 30 1770 1105 665 400 305 400 312
HBLVR(S)32-9-2 3x380V 30 1840 1175 665 400 305 400 313
HBLVR(S)32-9 3x380V 30 1840 1175 665 400 305 400 315
HBLVR(S)32-10-2 3x380V 30 1900 1240 665 400 305 400 319
