HBLVS 1 HBLVS 2 HBLVS 3 HBLVS 4 HBLVS 5 HBLVS 10 HBLVS 15 HBLVS 20 HBLVR / HBLVS 32 HBLVR / HBLVS 45 HBLVR / HBLVS 64 HBLVR / HBLVS 90
HBLVS 15

HOBILS Submersible Motor Pumps

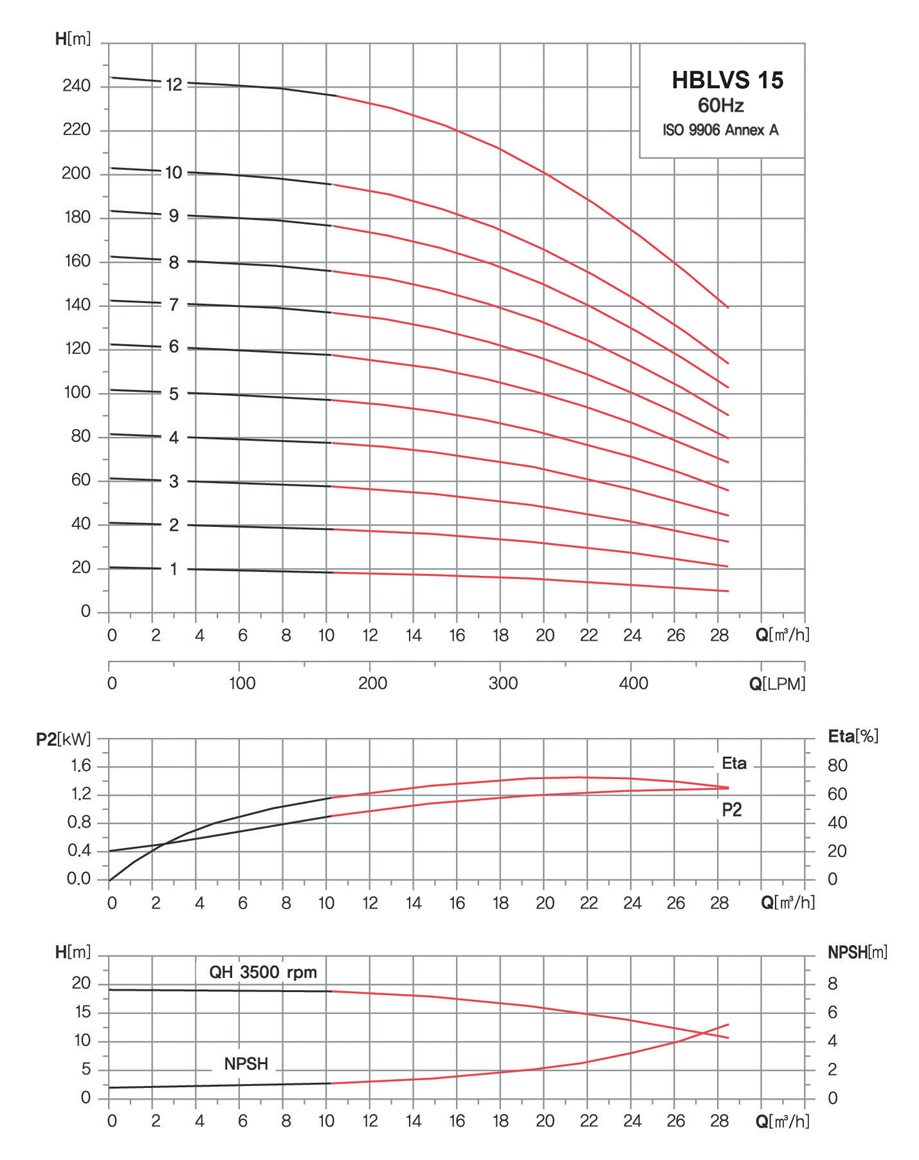

성능곡선

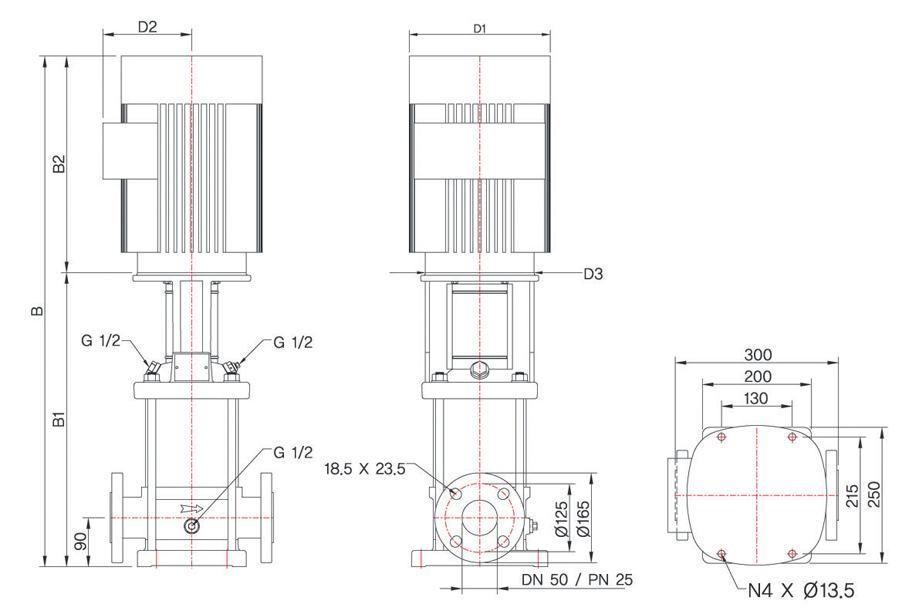

외형자료

규격/중량

Pump Type Voltage Power 치수표[mm] Weight[kg]
B B1 B2 D1 D2 D3
HBLVS 15-1 3x220/380V 1.5 679 369 310 168 112 140 49
HBLVS 15-2 3x220/380V 3 749 419 330 194 124 150 54
HBLVS 15-3 3x220/380V 4 821 464 357 212 142 150 66
HBLVS 15-4 3x380V 5.5 939 541 398 259 164 200 88
HBLVS 15-5 3x380V 7.5 984 586 398 259 164 200 92
HBLVS 15-6 3x380V 11 1207 708 499 330 255 350 124
HBLVS 15-7 3x380V 11 1252 753 499 330 255 350 125.5
HBLVS 15-8 3x380V 11 1297 798 499 330 255 350 127
HBLVS 15-9 3x380V 15 1342 843 499 330 255 350 143
HBLVS 15-10 3x380V 15 1387 888 499 330 255 350 144.5
HBLVS 15-12 3x380V 18.5 1521 978 543 330 255 350 178
